Stone Grinding Blocks: Selection & Use Guide

Stone Grinding Blocks: A Practical Guide to Choosing and Using Diamond Grinding Blocks

Diamond grinding blocks are commonly used in stone fabrication for surface grinding, leveling, edge preparation, and scratch removal. Choosing the right grinding block and using the correct grinding sequence can improve surface consistency and reduce unnecessary tool wear.

Different stone materials require different grinding characteristics. Granite, marble, quartz, porcelain, and other engineered materials can respond differently to diamond tools, so the right block, grit, and working method are important.

This guide explains how diamond grinding blocks work, how to choose the right type, and how to use them effectively for stone processing.

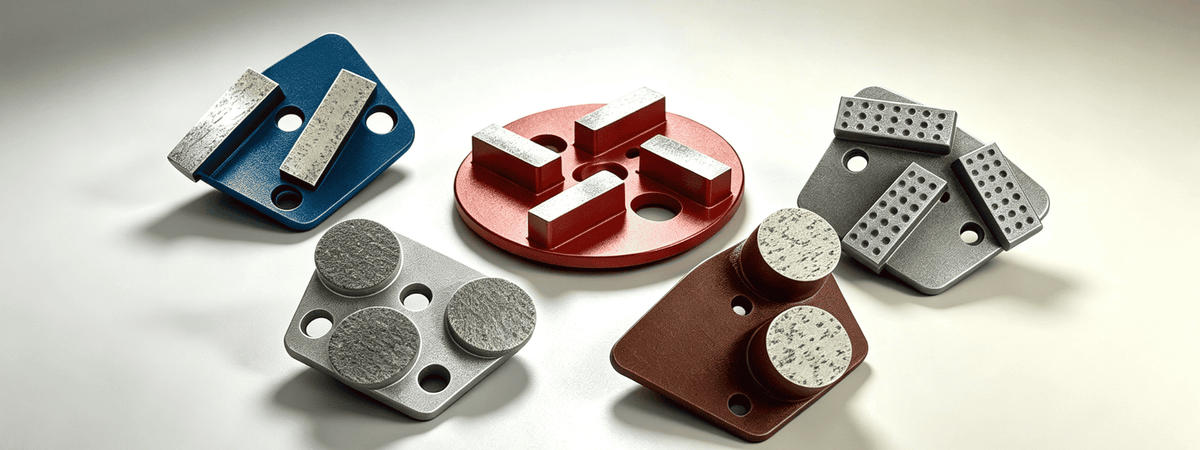

What Are Diamond Grinding Blocks?

Diamond grinding blocks are abrasive tools containing diamond particles designed to remove material from stone surfaces.

They are mainly used during the grinding and surface preparation stages before fine polishing.

Common applications include:

• Stone surface leveling
• Scratch removal
• Edge grinding
• Surface preparation
• Thickness adjustment
• Removing saw marks
• Preparing stone for polishing
• Granite and marble fabrication

Diamond grinding blocks are available in different grit sizes and bonding systems to match different materials and grinding stages.

When Should You Use a Grinding Block?

Grinding blocks are normally used before polishing.

For example, when a stone slab has saw marks, uneven areas, or visible scratches, a coarse grinding block can be used to remove the defects. Finer grits can then be used to refine the surface before moving to polishing pads.

A typical workflow is:

Grinding → Fine Grinding → Honing → Polishing

The exact sequence depends on the stone material, machine, surface condition, and desired finish.

How to Choose the Right Grinding Block

Several factors should be considered when selecting a diamond grinding block.

1. Consider the Stone Material

Different materials have different hardness and grinding characteristics.

Granite

Granite is a hard natural stone and generally requires a durable diamond tool with sufficient cutting ability.

Coarser diamond grinding blocks are commonly used for:

• Removing saw marks
• Leveling surfaces
• Heavy material removal

Finer grits can then be used to prepare the surface for polishing.

Marble

Marble is softer than granite and can be more sensitive to aggressive grinding.

A suitable grinding block should provide controlled material removal without creating unnecessary deep scratches.

Quartz and Engineered Stone

Quartz and engineered stone can require a different grinding approach from natural stone.

Stable tool performance and proper cooling are important, especially when working at higher machine speeds.

Porcelain and Sintered Stone

Porcelain and sintered stone are hard and can be sensitive to chipping during edge processing.

Diamond grinding blocks designed specifically for these materials can help provide more controlled edge and surface grinding.

Understanding Diamond Grit Sizes

Grit size determines how aggressively the grinding block removes material and how fine the resulting surface becomes.

A general grinding sequence may include:

Coarse grits remove material faster but leave deeper grinding marks.

Fine grits remove less material but create a smoother surface.

The correct grit sequence depends on the starting condition of the stone. If deep scratches or saw marks remain, moving directly to a very fine grit may not remove them efficiently.

Wet Grinding vs. Dry Grinding

Diamond grinding blocks can be used in different working conditions depending on the tool design and application.

Wet Grinding

Wet grinding uses water during the grinding process.

Advantages

• Helps control working temperature
• Reduces airborne dust
• Helps flush grinding debris away
• Can improve tool working conditions

Wet grinding is commonly used in stone fabrication shops where water supply and collection systems are available.

Dry Grinding

Dry grinding does not use water during the grinding process.

Advantages

• Easier setup
• Suitable for some on-site applications
• No water collection required

However, dry grinding can generate more dust and heat.

When using dry grinding tools, follow the manufacturer's recommended operating speed and working conditions.

How to Use Diamond Grinding Blocks

Proper operation is just as important as selecting the right tool.

Step 1: Check the Stone Surface

Before grinding, inspect the surface for:

• Deep scratches
• Saw marks
• Uneven areas
• Chips
• Surface contamination

Identify the main defects before choosing the initial grit.

Step 2: Select the Starting Grit

Use a coarse grit when significant material needs to be removed.

If the surface is already relatively smooth, starting with an unnecessarily coarse grit can create additional scratches and increase grinding time.

Step 3: Keep the Tool Moving

Avoid holding the grinding block in one position for too long.

Maintain consistent movement across the working area to reduce uneven grinding and localized heat buildup.

Step 4: Use Appropriate Pressure

Excessive pressure does not always improve grinding performance.

Too much pressure can increase:

• Heat
• Tool wear
• Surface damage
• Machine load

Allow the diamond abrasive to perform the cutting rather than relying on excessive downward pressure.

Step 5: Progress Through the Grits

After the coarse grinding stage, gradually move to finer grits.

For example:

50# → 100# → 200# → 400#

The exact sequence may vary depending on the stone and the condition of the surface.

Before moving to the next grit, make sure the scratches from the previous stage have been sufficiently removed.

Common Problems When Using Grinding Blocks

Uneven Grinding

Uneven pressure, inconsistent movement, or an unsuitable tool can create an uneven surface.

Keep the tool movement consistent and avoid concentrating pressure on one area.

Excessive Tool Wear

Rapid wear can result from:

• Incorrect tool selection
• Excessive pressure
• Improper machine speed
• Incompatible stone material
• Insufficient cooling during wet grinding

Always match the grinding block to the material and machine.

Deep Scratches After Grinding

Deep scratches can occur when using a coarse grit for too long or when skipping important intermediate grit stages.

Use a consistent progression and thoroughly remove the previous grit marks before moving to the next stage.

Overheating During Dry Grinding

Excessive heat can affect both the tool and the stone surface.

If the tool becomes excessively hot, check the machine speed, working pressure, tool compatibility, and whether the application requires a wet grinding process.

Grinding Block Maintenance

Proper handling can help maintain consistent tool performance.

After use:

1. Remove stone debris from the tool.
2. Allow wet tools to dry properly.
3. Store grinding blocks in a clean, dry location.
4. Check the diamond working surface before the next use.
5. Replace tools when the working surface is excessively worn.

Avoid using a worn tool simply to extend its service life if it no longer provides consistent grinding results.

Choosing the Right Grinding Block for Your Application

The best grinding block depends on several factors:

• Stone material
• Surface condition
• Required material removal
• Desired finish
• Wet or dry grinding
• Machine type
• Machine speed
• Grit sequence

There is no single grinding block that is ideal for every stone and every application.

For heavy material removal, a coarser diamond grit may be appropriate. For surface refinement, finer grits are generally more suitable.

Final Thoughts

Diamond grinding blocks are an important part of stone surface preparation and fabrication. The right combination of diamond grit, tool type, machine settings, and grinding method can help achieve a more consistent surface while reducing unnecessary tool wear.

Before selecting a grinding block, consider the material you are working with and the amount of material that needs to be removed. Start with an appropriate grit and progress through the grinding sequence without skipping necessary stages.

For granite, marble, quartz, porcelain, and other stone materials, selecting a grinding block designed for the specific application can make the grinding process more predictable and efficient.

If you need help selecting the right diamond grinding block for your stone processing application, contact XDT Service with your material, machine type, and grinding requirements.
